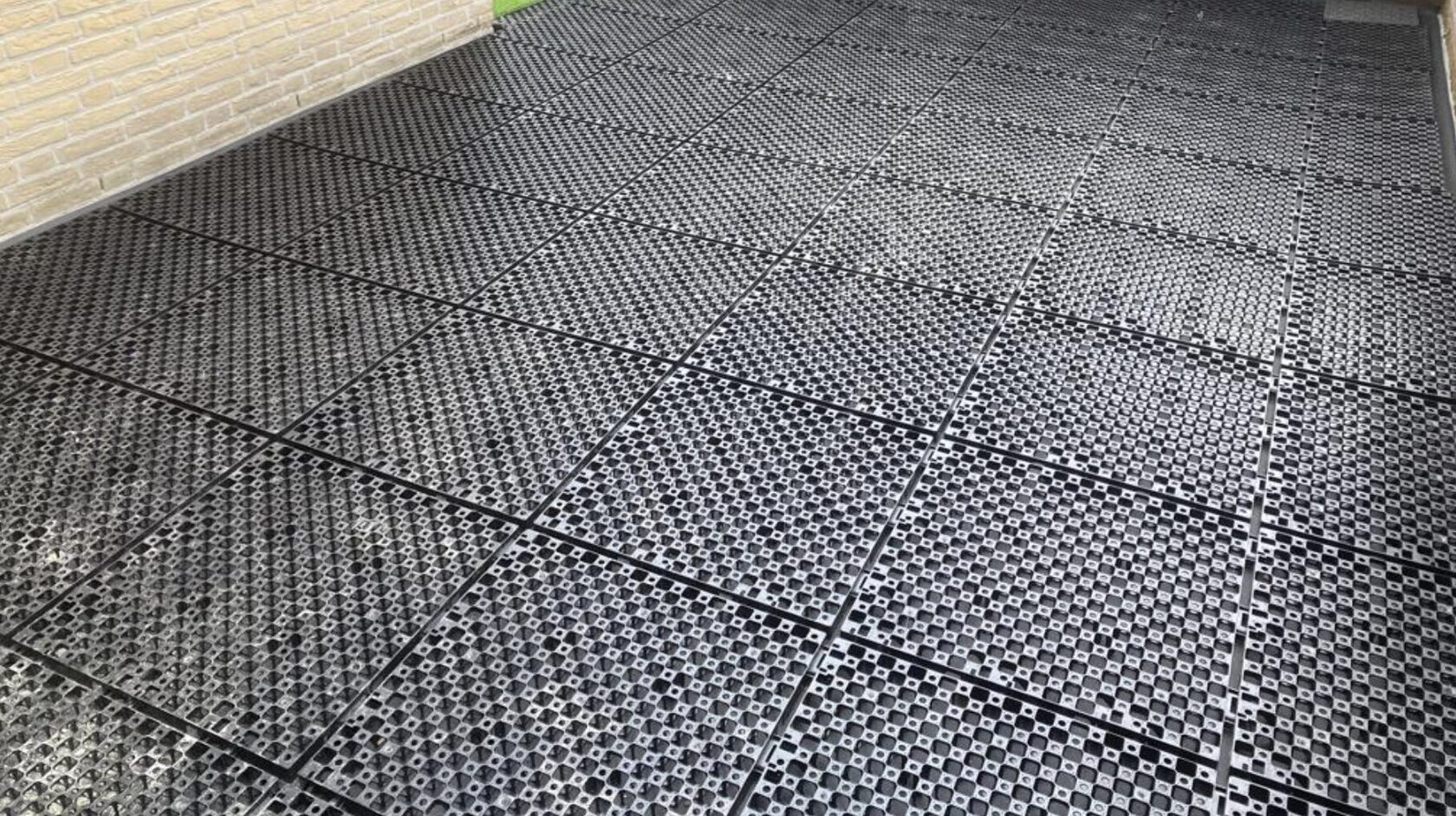

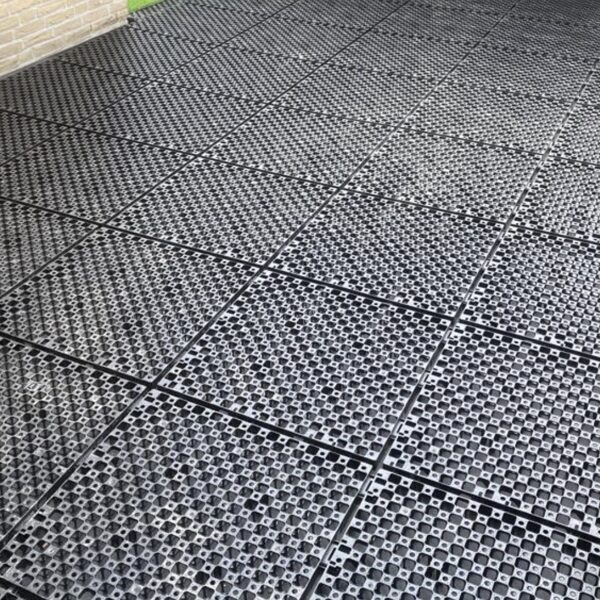

Drainbase is an innovative solution in the field of applications with artificial grass, combining the positive properties of artificial grass with the ability to buffer and infiltrate rainwater.
Made of 100% recycled HDPE, the drainage grids for artificial turf are also 100% recyclable. HDPE offers the ideal combination between a sturdy grid and high elasticity, even at cold temperatures. Drainbase forms a thermal buffer between the substrate and the outside temperature, improving walking comfort in freezing weather.

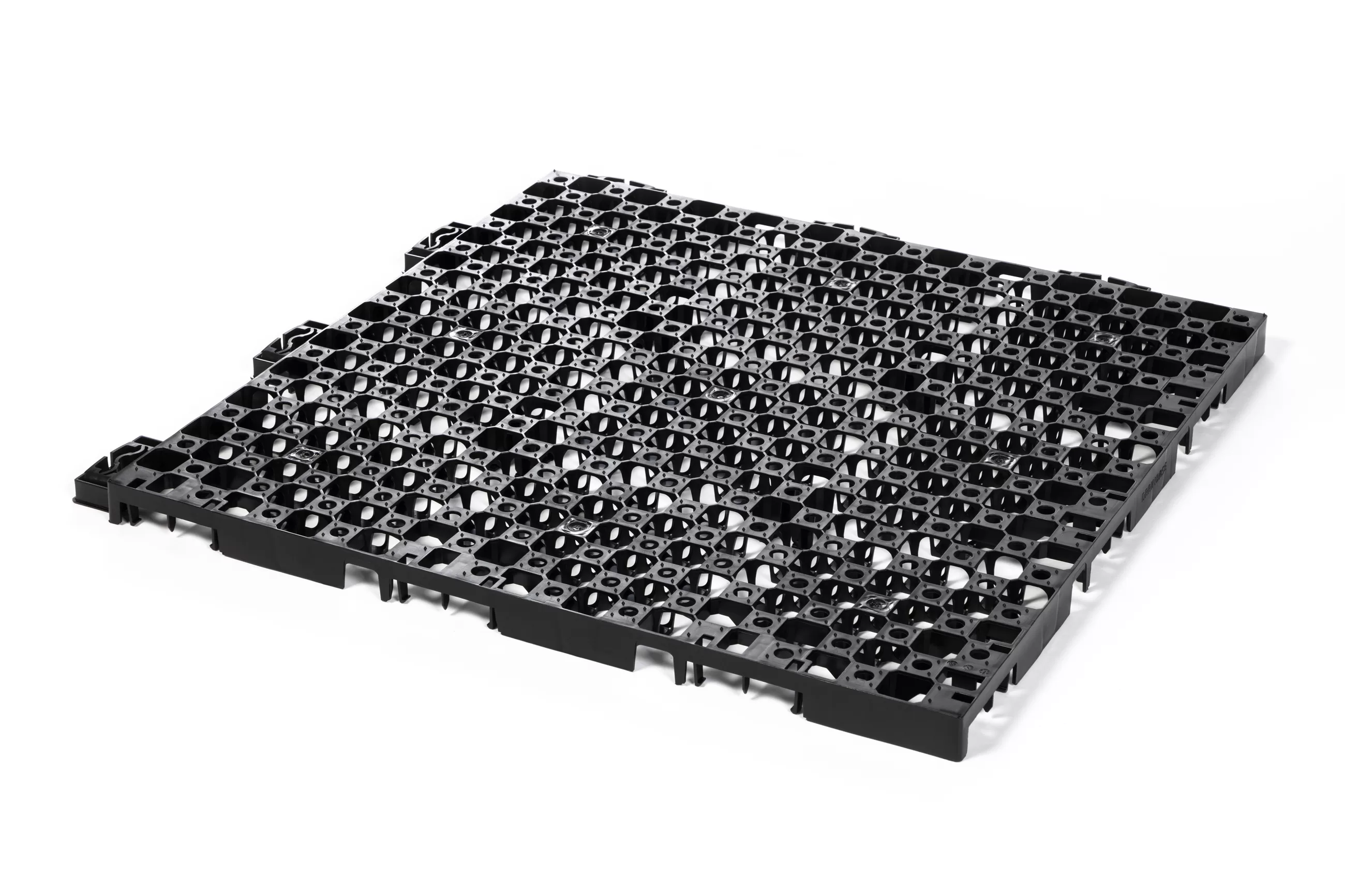

Furthermore, the Drainbase drainage grid consists of an inverted checkerboard pattern that guarantees good load distribution onto the foundation on the one hand and a stable contact surface for the artificial grass on the other.
Product
Drainbase fixing caps

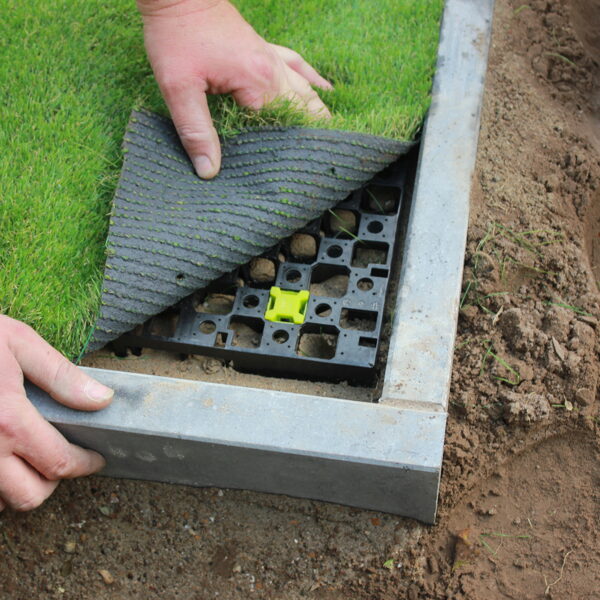

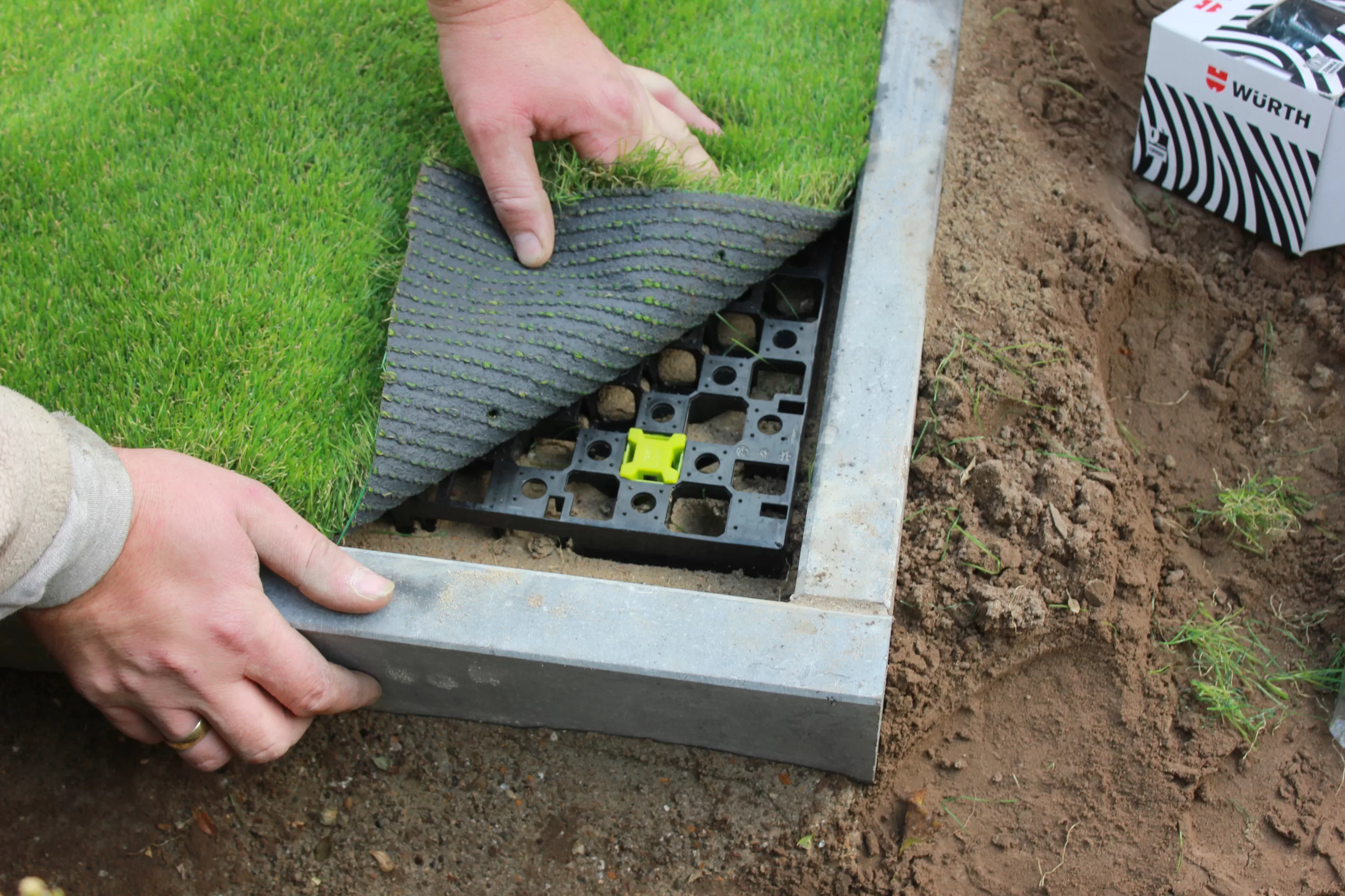

With the provided fixing caps and accompanying screws, the artificial grass can be fixed in any location. Moreover, using the caps, one can easily attach the specially developed Drainbase borders to the artificial grass.
Drainbase L-Stop
The sides of the Drainbase grids can be finished with the optional Drainbase L-Stop. This prevents the sub-base from being washed away and vermin from getting under the tiles.

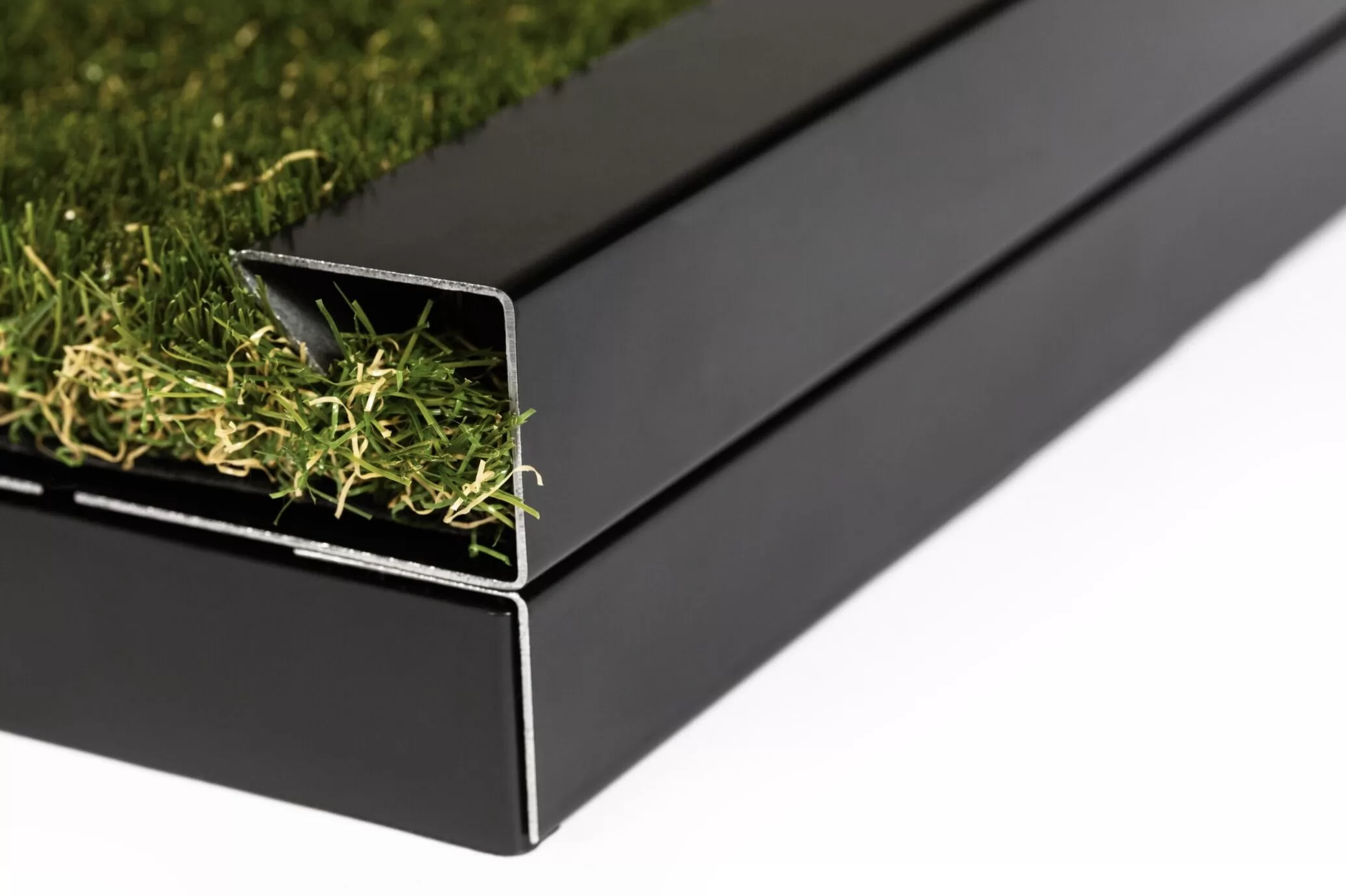

Drainbase Border
Drainbase Borders were specifically designed to provide a neat and tidy finish to your artificial grass project. In addition, this border prevents curling of the grass edges.
With the provided fixing caps and accompanying screws, the artificial grass can be fixed in any location. Moreover, using the caps, one can easily attach the specially developed Drainbase borders to the artificial grass.
Drainbase L-Stop
The sides of the Drainbase grids can be finished with the optional Drainbase L-Stop. This prevents the sub-base from being washed away and vermin from getting under the tiles.
Drainbase Border
Drainbase Borders were specifically designed to provide a neat and tidy finish to your artificial grass project. In addition, this border prevents curling of the grass edges.
Advantages
Optimal load distribution
The perfect ratio of contact surfaces at the top and bottom of the grid ensures optimal load distribution onto the sub-base. The perfect guarantee for an even artificial lawn. Avoid expensive and complex levelling works and save time and money.
High water buffering capacity
Drainbase buffers 30 litres of water per m². The solution for perfectly permeable, green and ecologically responsible paving.
Unique connection system
The joints allow the tiles to shrink and expand within their own dimensions, both during installation at cold and hot temperatures.
Anti-slip pins
The grid is equipped with 1,010 anti-slip pins, each 2 mm high, on the top side. These ensure that the artificial grass stays neatly in place without causing any damage to the backing.
Flexibility
Thanks to the 9 flexible zones integrated into the Drainbase, the drainage grid can be applied on various subbases while consistently maintaining contact with the ground.
The perfect ratio of contact surfaces at the top and bottom of the grid ensures optimal load distribution onto the sub-base. The perfect guarantee for an even artificial lawn. Avoid expensive and complex levelling works and save time and money.
High water buffering capacity
Drainbase buffers 30 litres of water per m². The solution for perfectly permeable, green and ecologically responsible paving.
Unique connection system
The joints allow the tiles to shrink and expand within their own dimensions, both during installation at cold and hot temperatures.
Anti-slip pins
The grid is equipped with 1,010 anti-slip pins, each 2 mm high, on the top side. These ensure that the artificial grass stays neatly in place without causing any damage to the backing.
Flexibility
Thanks to the 9 flexible zones integrated into the Drainbase, the drainage grid can be applied on various subbases while consistently maintaining contact with the ground.
Application
Drainbase is suitable for applications with artificial grass:
Garden and terrace
Rooftop terraces
Playgrounds
Golf courses
…
It is possible to place (garden) furniture and plant pots on Drainbase after installation.
Garden and terrace
Rooftop terraces
Playgrounds
Golf courses
…
It is possible to place (garden) furniture and plant pots on Drainbase after installation.
Technical information
Material: 100% recycled HDPE (high-density polyethylene) and 100% recyclable
Height of the tile: 30 mm
Tile dimensions: 60 x 60 cm = 0.36 m²/piece
Weight per tile: 917 grams // 2.55 kg per m²
Water buffering capacity: 30 litres/m²
Colour: black
Properties:
Anti-slip
9 flexible zones
Unique connection system
Inverted checkerboard pattern
Height of the tile: 30 mm
Tile dimensions: 60 x 60 cm = 0.36 m²/piece
Weight per tile: 917 grams // 2.55 kg per m²
Water buffering capacity: 30 litres/m²
Colour: black
Properties:
Anti-slip
9 flexible zones
Unique connection system
Inverted checkerboard pattern
