ECCOgravel
€11,00
ECCOgravel
ECCOgravel –stable and water-permeable gravel grid
ECCOgravel is a durable and frost-proof gravel grid made of high-quality HDPE plastic. It provides a stable, functional and aesthetic gravel surface while maintaining excellent water permeability – ideal for paths, parking lots, driveways and garden areas.
Technical parameters:
-
Size: 160 × 120 cm
-
Heights: 2 cm, 3 cm, 4 cm
-
Colors: white, black, gray
-
Material: high-strength HDPE
-
Embedded geotextile: prevents gravel from escaping under the grid
Why choose ECCOgravel?
✅ Excellent water permeability – prevents puddles, holes and shoes stuck in gravel
✅ High durability – the grid retains its shape both when empty and filled
✅ Aesthetic appearance – modern and clean gravel surface without grooves
✅ Quick and easy installation – apply and fill with gravel
✅ Long-term solution – suitable for intensive use and various climatic conditions
Compared to traditional solutions
Regular gravel with a fine fraction (e.g. 0-5 mm) can create a firm surface, but it does not allow water to pass through well, creating puddles and holes. It can also stick to shoes, causing dirt and discomfort.
ECCOgravel holds the gravel in place, reduces movement and provides excellent durability – even under heavy loads. The embedded geotextile protects the grid from leaching and extends the service life of the surface.
Product

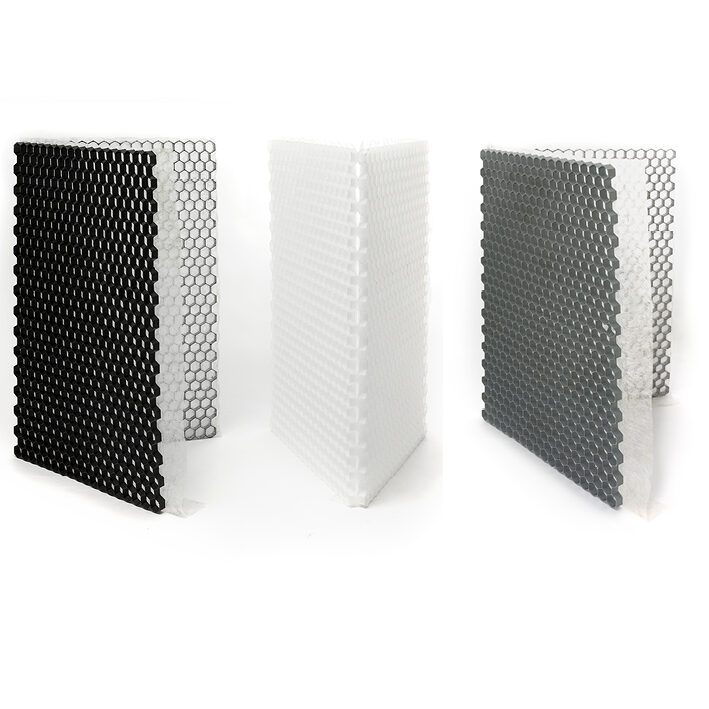

ECCOgravel grids are available in:
> 3 colors: white, gray and black
> 3 heights: 2cm, 3 cm and 4 cm
3 cm and 4 cm ECCOgravel gravel grids have similar properties (torque resistance, compressive strength, flexibility, etc.). However, the weight distribution on the foundation is better with the 4 cm grid than with the 3 cm grid.
Advantages
BELGIAN QUALITY PRODUCT
ECCOgravel gravel grids are entirely produced in Belgium. This allows not only a a quick deliver, but also to apply high quality parameters.
ECCOgravel gravel grids are entirely produced in Belgium. This allows not only a a quick deliver, but also to apply high quality parameters.
FROST- AND UV-RESISTANT HDPE GRAVEL GRIDS
ECCOgravel gravel grids are frost- and UV-resistant and made of HDPE (High-Density Polyethylene). Gravel stabilisation grids made of HDPE remain flexible at all times, even at frost temperatures down to -20°. Gravel grids manufactured from other materials could break at cold temperatures.
ECCOgravel gravel grids are frost- and UV-resistant and made of HDPE (High-Density Polyethylene). Gravel stabilisation grids made of HDPE remain flexible at all times, even at frost temperatures down to -20°. Gravel grids manufactured from other materials could break at cold temperatures.
HIGH PRESSURE RESISTANCE
ECCOgravel gravel grids have a compressive strength in a filled state of up to 400 tonnes/m². Unfilled, the grids have a compressive strength of 90 tonnes/m². The compressive strength is important because it reflects to what extent the grid can be subjected to maximum loads. Thanks to the high compressive strength, an ECCOgravel gravel grid is extremely suitable for the construction of your driveway, parking lot, fire roads, etc.
ECCOgravel gravel grids have a compressive strength in a filled state of up to 400 tonnes/m². Unfilled, the grids have a compressive strength of 90 tonnes/m². The compressive strength is important because it reflects to what extent the grid can be subjected to maximum loads. Thanks to the high compressive strength, an ECCOgravel gravel grid is extremely suitable for the construction of your driveway, parking lot, fire roads, etc.
HIGH TORQUE RESISTANCE
Not only the pressure resistance of a gravel grid is important, the torque resistance is also very important. When you are driving a car over gravel sheets, you are not only exerting pressure, but your manoeuvring (twisting and turning) also exerts torque forces on the substrate. Here too, the importance of HDPE (High-Density Polyethylene) comes into play: thanks to this composition, ECCOgravel grids remain flexible, which means they will not break or deform over time. Moreover, all ECCOgravel grids boast synthetic reinforcements between the honeycombs in order to enhance torque resistance.
Not only the pressure resistance of a gravel grid is important, the torque resistance is also very important. When you are driving a car over gravel sheets, you are not only exerting pressure, but your manoeuvring (twisting and turning) also exerts torque forces on the substrate. Here too, the importance of HDPE (High-Density Polyethylene) comes into play: thanks to this composition, ECCOgravel grids remain flexible, which means they will not break or deform over time. Moreover, all ECCOgravel grids boast synthetic reinforcements between the honeycombs in order to enhance torque resistance.
HIGH-STRENGTH GEOTEXTILE
A great deal of attention is given not only to the composition of the plate itself; the anti-rooting mat (also called geotextile) is also selected with great care. This geotextile ensures that the pebbles do not end up underneath the plate. The geotextile for ECCOgravel grids is 100% bonded, preventing this issue from occurring here. In addition, the geotextile is manufactured from polyester, which is a high-strength material. Not only is the geotextile exceedingly strong, but it also has an open structure. This ensures that rainwater permeates into the substrate quickly, allowing your gravel surface to remain clean. Lastly, plants and grasses also have a harder time attaching, preventing the growth of weeds.
A great deal of attention is given not only to the composition of the plate itself; the anti-rooting mat (also called geotextile) is also selected with great care. This geotextile ensures that the pebbles do not end up underneath the plate. The geotextile for ECCOgravel grids is 100% bonded, preventing this issue from occurring here. In addition, the geotextile is manufactured from polyester, which is a high-strength material. Not only is the geotextile exceedingly strong, but it also has an open structure. This ensures that rainwater permeates into the substrate quickly, allowing your gravel surface to remain clean. Lastly, plants and grasses also have a harder time attaching, preventing the growth of weeds.
DIFFERENT COLOURS
ECCOgravel gravel grids are available in white, grey or black.
ECCOgravel gravel grids are available in white, grey or black.
Application

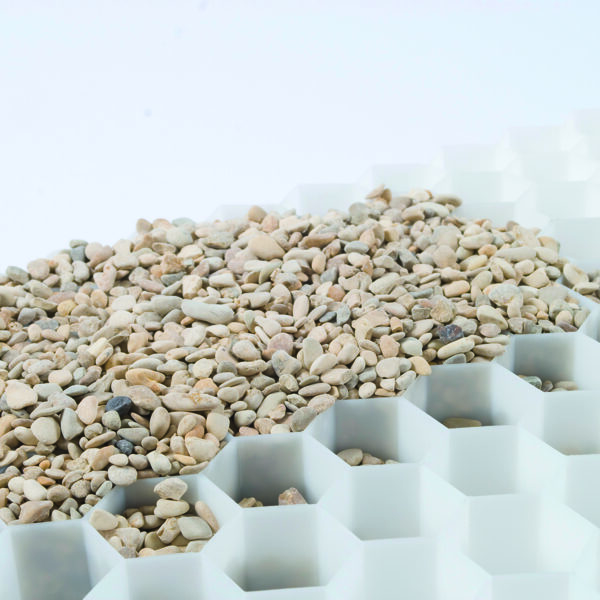

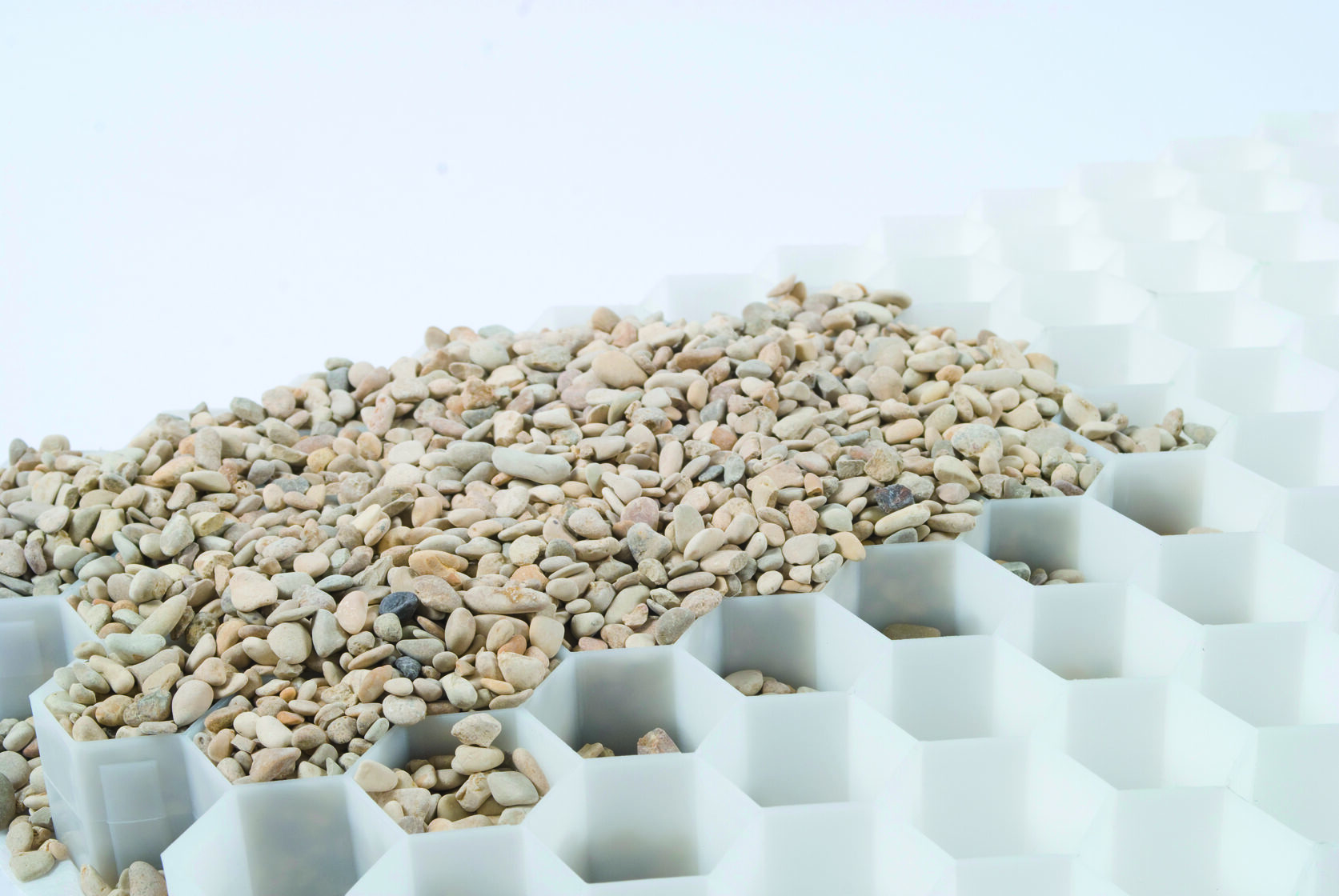

With ECCOgravel gravel grids you obtain a permeable ground reinforcement that at the same time has a natural look. The combination of the permeable geotextile and the sturdy honeycomb structure prevents ruts and puddles, dust and ensures that the gravel does not shift after installation or ends up under the gravel grids. These gravel grids have a wide range of applications:
>Terraces
>Footpaths and garden paths
>Driveways
>Car parks
>Rooftop terraces
>Firebreaks
>…
>Terraces
>Footpaths and garden paths
>Driveways
>Car parks
>Rooftop terraces
>Firebreaks
>…
Technical information
Specifications of the honeycomb structure
Grid dimensions (*): 160 x 120 cm
Grid height (**): 4 cm (ECCOgravel 40) or 3 cm (ECCOgravel 30)
Honeycomb diameter: 43 mm
HDPE density: 0,95 g/cm³
Honeycomb material: 100% HDPE – high-density polyethyleen
00% recyclable material: Yes (white, grey and black)
100% recycled material: Yes (grey and black) / No (white)
Breaking strain, unfilled: ISO 844 – 90 ton/m²
Breaking strain, filled: ISO 844 – tot 400 ton/m²
Geotextile properties
Material: Nonwoven polyester
Colour: white
Geotextile weight: 50 g/m²
Geotextile bonding: Adhesion resistance to honeycomb structure
Geotextile overlap: On two sides of the grid
Tensile strength: 65 N/5 cm (EN 29073/3)
Resistance to cracking: 70 N (DIN 53363)
Mechanical properties:
Flexibility: Very high
Chemical stability: Very high
UV-stability: long-term exposure : yes / When stored indoors: n/a
Coefficient of thermal expansion: n/a (expansion forces are absorbed by the flexibility of the grid)
Cold temperatures: Retains its flexibility
Practical properties
* a tolerance of about 2%
** a tolerance of about 1.5 mm
Grid dimensions (*): 160 x 120 cm
Grid height (**): 4 cm (ECCOgravel 40) or 3 cm (ECCOgravel 30)
Honeycomb diameter: 43 mm
HDPE density: 0,95 g/cm³
Honeycomb material: 100% HDPE – high-density polyethyleen
00% recyclable material: Yes (white, grey and black)
100% recycled material: Yes (grey and black) / No (white)
Breaking strain, unfilled: ISO 844 – 90 ton/m²
Breaking strain, filled: ISO 844 – tot 400 ton/m²
Geotextile properties
Material: Nonwoven polyester
Colour: white
Geotextile weight: 50 g/m²
Geotextile bonding: Adhesion resistance to honeycomb structure
Geotextile overlap: On two sides of the grid
Tensile strength: 65 N/5 cm (EN 29073/3)
Resistance to cracking: 70 N (DIN 53363)
Mechanical properties:
Flexibility: Very high
Chemical stability: Very high
UV-stability: long-term exposure : yes / When stored indoors: n/a
Coefficient of thermal expansion: n/a (expansion forces are absorbed by the flexibility of the grid)
Cold temperatures: Retains its flexibility
Practical properties
| Height (**) | Length x width (*) | m²/grid | gravel/m² |
| 4 cm | 160 x 120 cm | 1,92 | 80 kg |
| 3 cm | 160 x 120 cm | 1,92 | 65 kg |
** a tolerance of about 1.5 mm
